IR Remote-Controlled Light

My design for a IR-remote-controlled light using an Adafruit Trinket M0, and CircuitPython
, Updated: 2 min read

This project uses CircuitPython & Adafruit’s trinket m0 for decoding the IR signals, Since the LED’s supposed to draw about 20mA, and the pads on the Trinket’s documentation specifies a max of 7mA for each pad, we use an NPN transistor to toggle the LED. It’s programmed with CircuitPython, and code can be found here.

Parts List

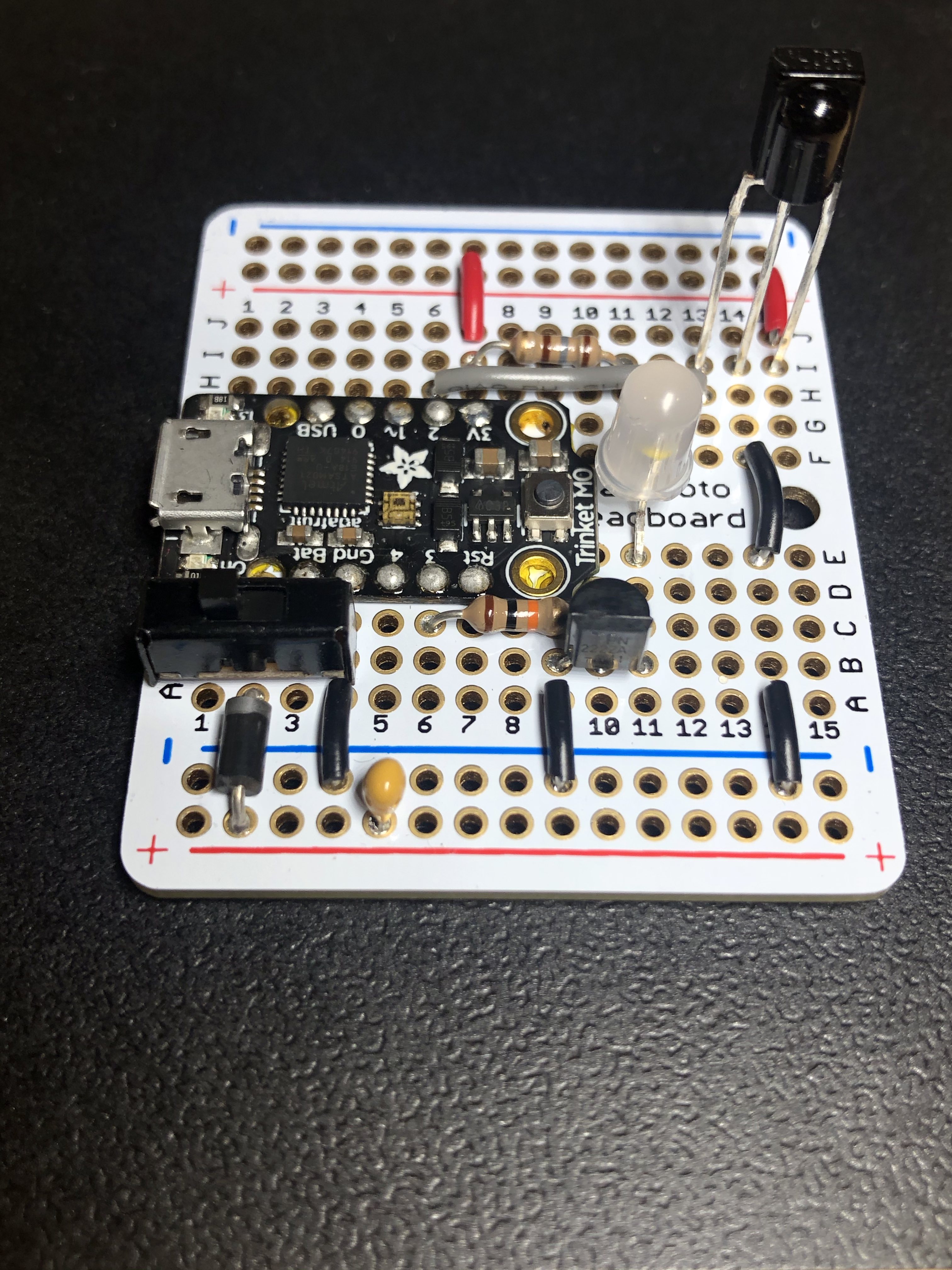

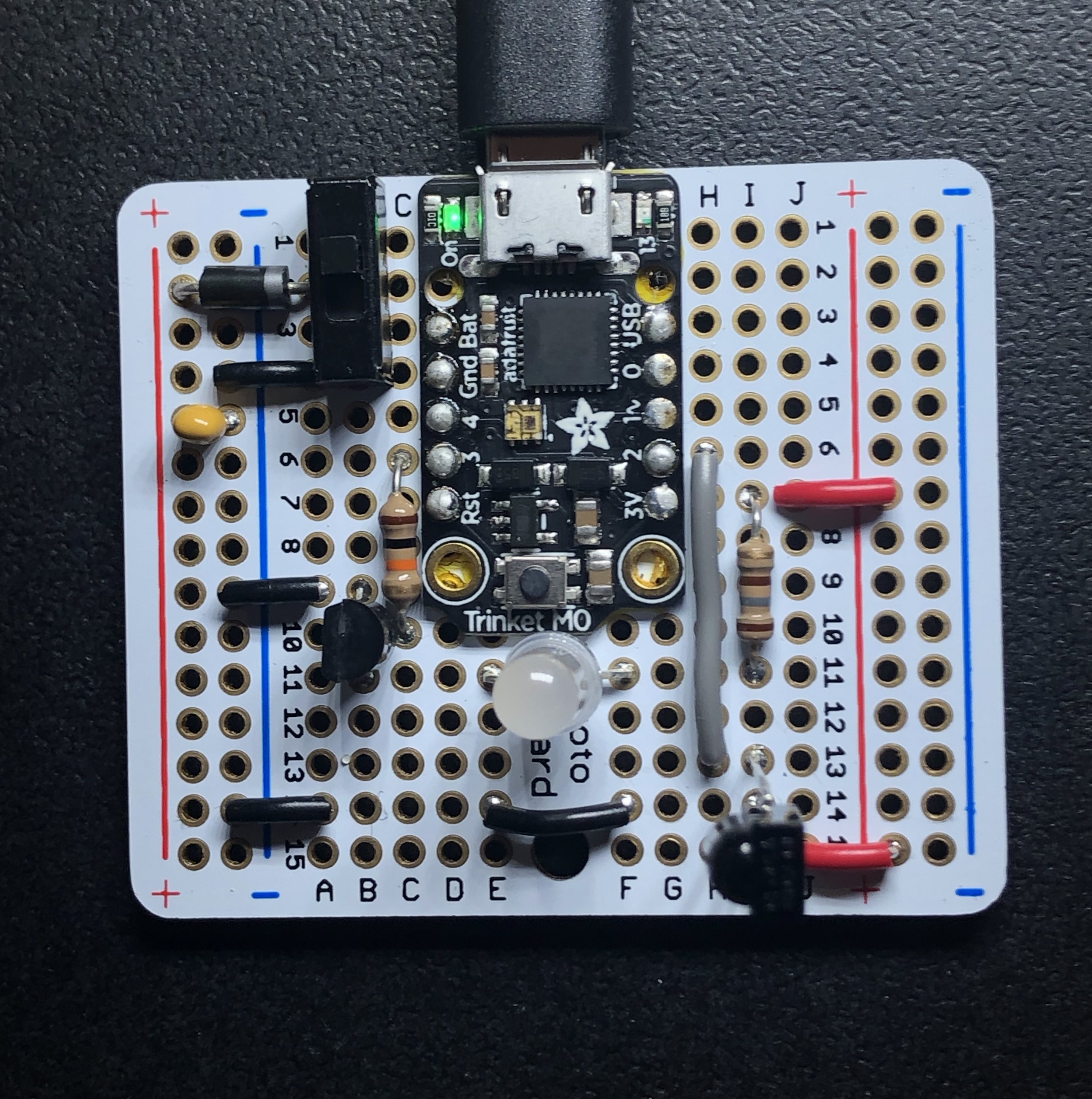

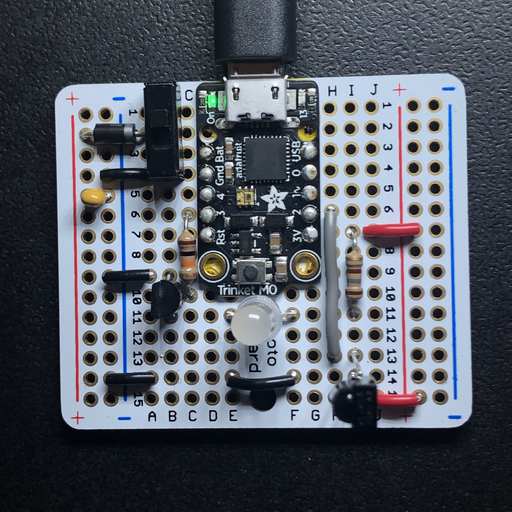

Top View of Finished PCB
Top view of finished PCB

Extra Features

  • Alternate power supply can be added from ~3.3-6V on the left rail. A tiny ceramic capacitor is used for smoothing voltage spikes, and the input is switchable to allow for non-IR operation.
  • The trinket m0 has built-in usb for programming
  • It can be adapted to recieve codes from most IR remotes to integrate with existing lighting.


  • Attaching the trinket is done by centering it on the pads on the protoboard, and surface soldering it through the holes.
  • The 10kΩ resistor is connected from digital out #3 to the base of the NPN transistor.
  • The 180Ω resistor connects the +3V source to the positive terminal of the LED.
  • The LED is then connected to the collector of the NPN transistor.
  • The Emitter of the NPN transistor is then grounded.
  • The IR Sensor’s OUT pin is connected to digital in #2 and decoded in software.
  • The IR Sensor’s Vs and GND pins are connected to +3V and ground.


Programming is done by replacing the on the circuitpython drive with the code here. We must also copy the adafruit_irremote and adafruit_dotstar libraries into libraries folder.


Schematic for the project

Additional Images

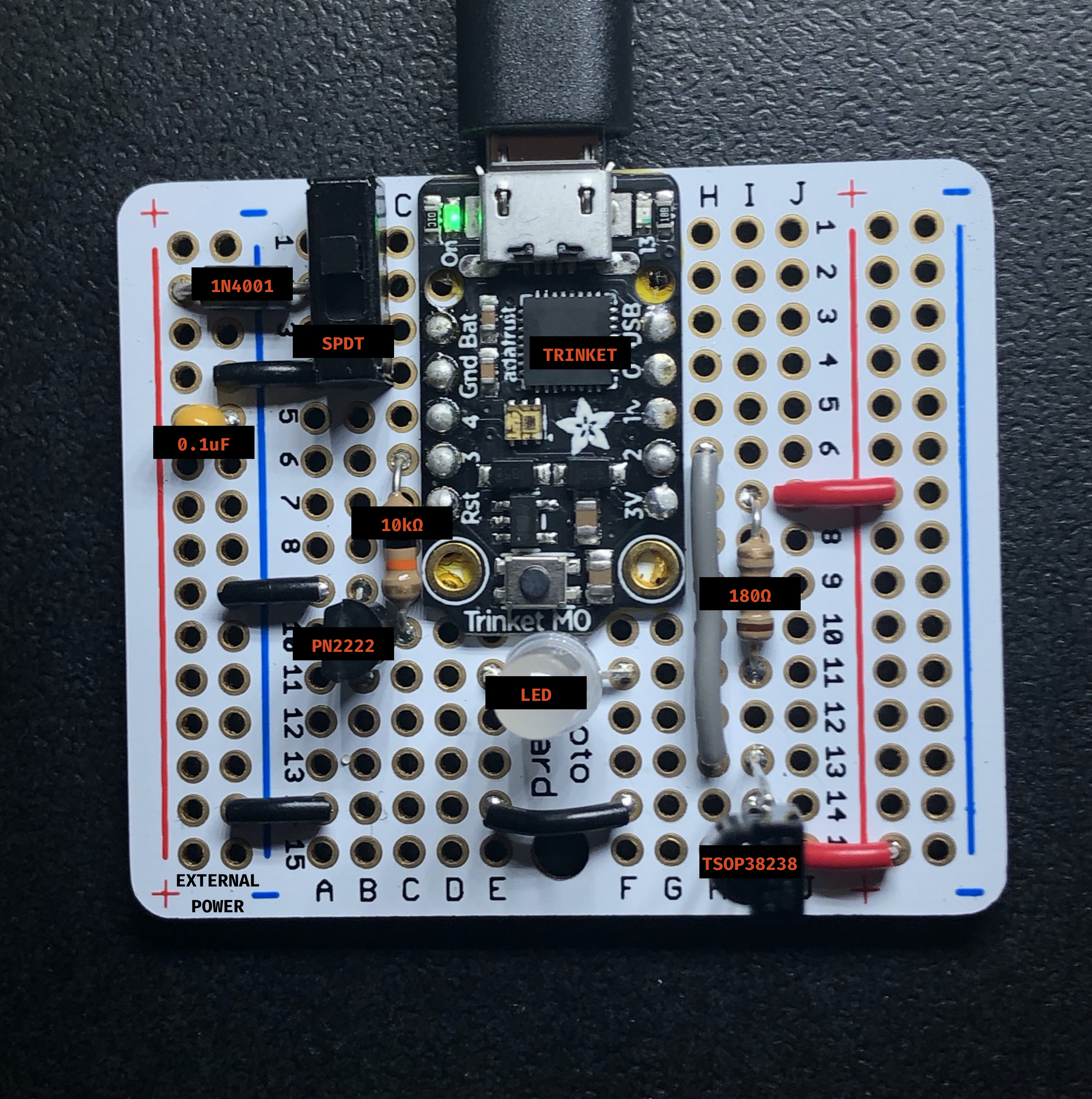

Annotated PCB Image
Annotated image with individual parts

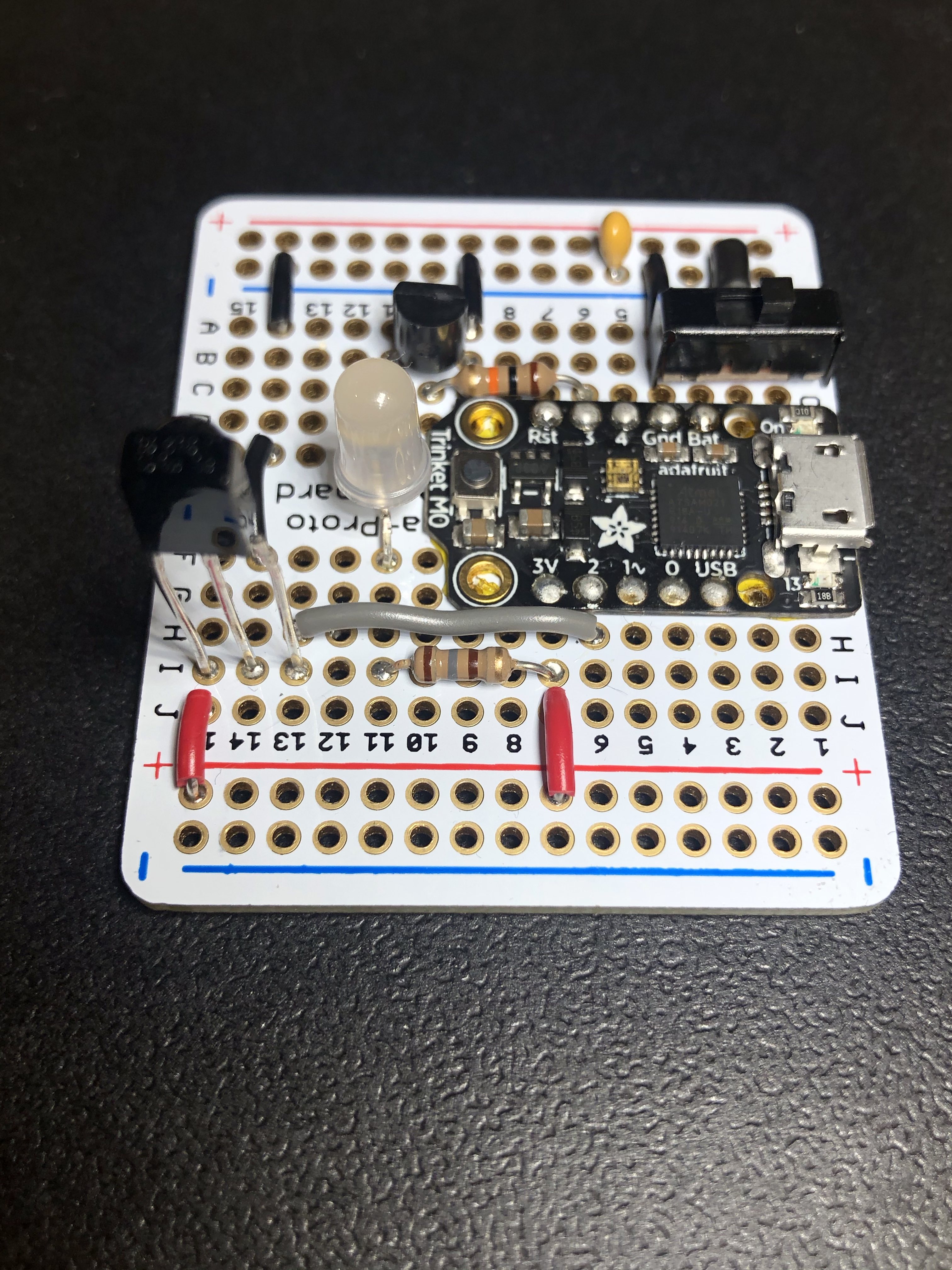

Side View of Finished PCB
Side view of finished PCB
Side View of Finished PCB
Side view of finished PCB
